IP67 Momentary PTO Switch Hydraulic Tractor Seat Switch

Product Categories
Dongguan Yeswitch Electronics Co.,Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

IP67 Momentary PTO Switch Hydraulic Tractor Seat Switch

Certification : ISO9001, CCC

Price : Negotiable

Brand Name : YESWITCH

Model Number : R13-57

Place of Origin : China

Payment Terms : T/T

Model NO. : R13-57

Wiring : Null Line and Live Line

Application : Home Appliance, Electronics, Lighting, Industrial, Apartment/Villa, Hotel, Commercial, Home

Type : Composite

Number of Switch : Single Control Switch

Structure : Power Built-in Type

Usage : Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch

Kind : Single-pole on-off Switch

Switch Current : 0.5A Max

Switch Voltage : 0-48VDC

Switch Power : 10W/Va

Conduction Travel : 3mm

Total Travel : 5mm

Operating Force : 20n

Temperature Range : -40 to 85 Degrees

Ingress Protection : IP67

Electrical Life : 24V 400mA 100,000 Cycles

Mechanical Life : 1,000,000 Cycles

Transport Package : 50 PCS a Box/ 11000PCS a Carton

Specification : 30mm

Protection : Durable, Explosion-Proof, Waterproof, Dust-Proof

Feature : Flat

Contact Now

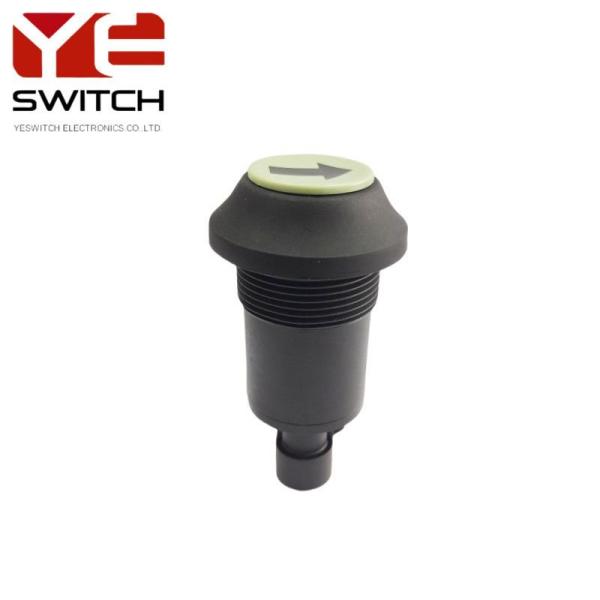

IP67 Momentary Hydraulic Push Button Switch For Tractor
Product Description

The tractor hydraulic push button switch is specifically designed for agricultural machinery, featuring a custom pattern option, a size of 30mm, a reset normally open function, and an IP67 dust and waterproof rating. This design ensures that the waterproof push button switch maintains stable and reliable performance in harsh agricultural working environments.

Detailed Parameters:
Size: 30mm, suitable for installation on the control panels of most agricultural machinery.
Custom Pattern: Custom pattern service is available, allowing for the printing of specific logos based on customer requirements, enhancing product recognition.
Functional Characteristics: The reset normally open function means that the waterproof push button switches are in the off position when not operated. When pressed, the circuit is connected, and it automatically returns to the off position when released. This design helps reduce accidental operations and improves safety.
Dust and Waterproof Rating: IP67 rating, meaning the momentary push button switch can completely prevent the ingress of foreign objects and can withstand short-term immersion in water under certain pressure. This ensures that the waterproof push button momentary switch can operate normally in wet and dusty agricultural working environments, extending its service life.

Application Scenarios:
The tractor hydraulic push button switch is suitable for various types of agricultural machinery, such as tractors, harvesters, seeders, etc. It can be used to control the start and stop of hydraulic systems, enabling the lifting, tilting, and other movements of agricultural implements, thereby improving the operational efficiency and flexibility of agricultural machinery.
Specification:
SWITCH CURRENT: 0.5A MAX
SWITCH VOLTAGE: 0-48VDC
SWITCH POWER: 10W/VA
CONDUCTION TRAVEL: 3MM±1MM
TOTAL TRAVEL: 5MM±1MM
OPERATING FORCE: 20N±5N
TEMPERATURE RANGE: -40 TO 85 DEGREES
ELECTRICAL LIFE: 24V 400MA 100,000 CYCLES
MECHANICAL LIFE: 1,000,000 CYCLES
INGRESS PROTECTION: IP67
Photo:

IP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat SwitchIP67 Momentary PTO Switch Hydraulic Tractor Seat Switch
